Dobner Aluminium Strip Ceilings - Description

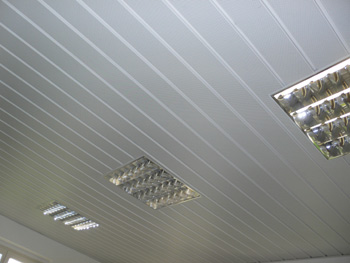

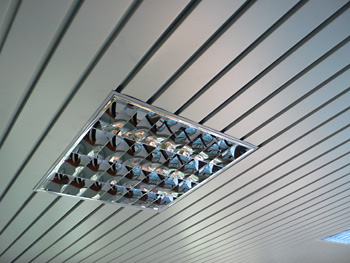

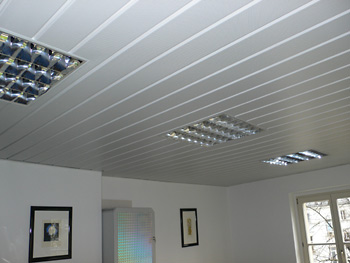

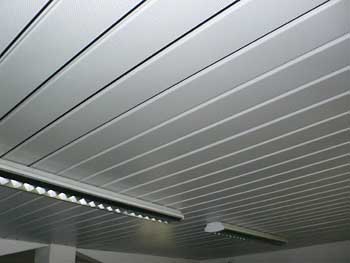

Dobner aluminium strip ceilings - Reception, Ulm - Germany
DOBNER ALUMINIUM STRIP CEILINGS
Dobner aluminium strip ceilings
DOBNER ALUMINIUM STRIP CEILINGS
Dobner aluminium strip ceilings
DOBNER ALUMINIUM STRIP CEILINGS
Dobner aluminium strip ceilings
DOBNER ALUMINIUM STRIP CEILINGS
Aluminium Strip

The Aluminium strip consists of an AIMn 1 Mg 0.5 alloy to DIN 1725 H 48 and high-gloss anodised made from AL 99.85 (hard).

Behavior in fire

Non combustible construction materials, Class A to DIN 4102 (A 1, A2).

Coating

The visible face of the strips is stove enamelled and is avaiable in all RAL clours. The polyester paint has a thickness of 20mµ, is corrision-resistant, light-fast, abrasion-resistant, frost-resistant. water-repellent, odour-free and electrostatically non chargeable.
All strips are coated with a transparent protective paint with a thickness of 5 mµ on the rear side.

Should you require a special shape matched uniquely to our individual requirements, we will be more than willing to submit a quotation to you.

Special components

If necessary, we can integrate customised components in our strip system (ventilation, air-conditioning systems, curtain systems ...)

Sound absorption

The room volume is increased proportionally by the open join and additional perforation of the strps. In conjunction with the sound-absorbent material, it is possible to adapt the characteristics of the acoustic ceiling perfectly to the relevant acoustic requirements of the room.
If required, we are able to supply a sound-absorption diagram for each strip system, showing the precise characteristics of the sound-absorption curve.
  • Strip Kp 84 / Modul size 100 / perforated
    Gap width 16 mm, acoustic boards 20 mm, ceiling cavity 200 mm

  • Strip K 84 / Module size 100 / unperforated
    Gap width 16 mm, acoustic boards 20 mm, ceiling cavity 200 mm


  • Strip Kp 134 / Module size 150 / perforated
    Gap width 16 mm, acoustic boards 20 mm, ceiling cavity 200 mm


  • Strip K 134 / Module size 150 / unperforated
    Gap width 16 mm, acoustic boards 20 mm, ceiling cavity 200 mm


  • Strip K 100 / Module size 100 / closed
  • Gap width 16 mm closed, acoustic boards 20 mm, ceiling cavity 200 mm
